Redefining Construction Standards

One Panel. Complete Solution

Revolutionize your project timeline without compromising on quality. Our Insulated Metal Panels (IMPs) combine structural integrity, superior insulation, and weather protection into a single, high-performance component. Say goodbye to multi-step framing and hello to the future of building.

Energy Efficiency

Continuous polyurethane core eliminates thermal bridging. Superior effective R-Values.

Fast Installation

Single-step installation replaces framing, insulation, and vapor barriers. Up to 50% faster.

Versatility

A unified system suitable for walls, roofs, and floors across residential and commercial projects.

Request a quote today

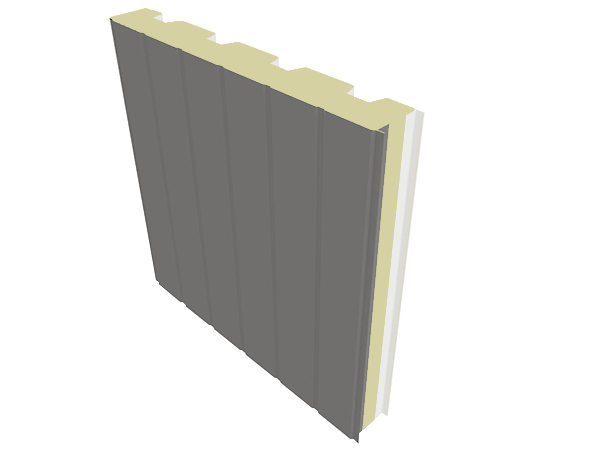

Summit Structural Panels

Summit panels are structural, self-framing panels that can reduce or eliminate the need for additional structural framework in your project. These panels can be used to form the floor, wall and roof systems of your building envelope.

COVERAGE WIDTH: 36” (1067mm)
PANEL LENGTHS: 4’ to 42’ (1219mm to 12,801mm)
EXTERIOR FACE: 24ga corrugated pre-painted Grade 33 steel (conforms to ASTM A792), Z275 or AZM150 finish, embossed texture

THICKNESS	5”
EFFECTIVE R-VALUE*	28.5

INTERIOR FACE 24ga deep corrugated galvanized G-90 (Z275) pre painted steel

* Thermal testing in accordance with ASTM C518.

Standard Exterior Colours:

White White

Stone Grey

Charcoal

Buckskin

Dark Red

Heron Blue

Black

Premium Exterior Colours:

Espresso

Frontier

Standard Interior Colours:

White White

Galvalume

Load Tables & Technical Data

Structural load tables available upon request.

Demensions:

Summit Structural Panels Typical Dimensions

Summit Structural Panels Corner Dimensions

Horizon Wall Panels – Smooth

Horizon Wall Panels – Embossed

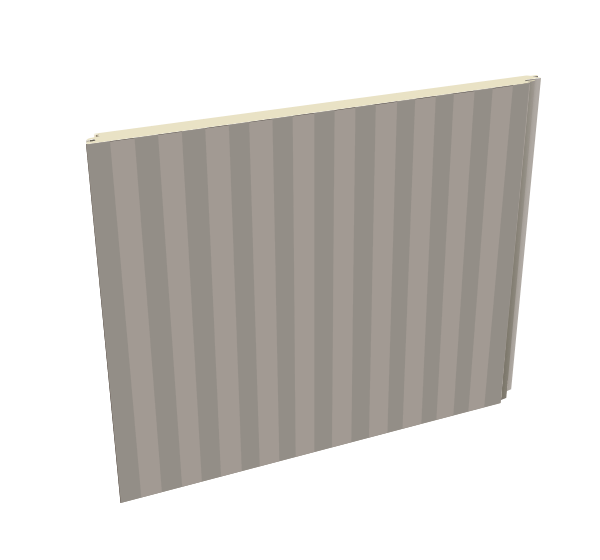

Horizon Wall Panels

Horizon Wall panels are produced with a standard Mesa profiled steel face with a Smooth (SM) or Light Embossed finish (LE). Provides economical panels for industrial and commercial walls with added strength from a double Mesa profile for long panel lengths.

COVERAGE WIDTH: 42” (1067mm)
PANEL LENGTHS: 8’ to 52’ (2438mm to 15850mm)
PROFILE: Mesa
EXTERIOR FACE: 22ga, 24ga, or 26ga galvanized G-90 (Z275) pre-painted steel
INTERIOR FACE: 22ga, 24ga, or 26ga galvanized G-90 (Z275) pre-painted steel
AVAILABLE FINISH: Smooth, Light Emboss

THICKNESS	2”	3”	4”	5”	6”
EFFECTIVE R-VALUE*	16.67	25	33.33	41.67	50

INTERIOR FACE 26ga Mesa profile in smooth or light embossed galvanized G-90 (Z275) pre painted steel in Regal White. Other gauge options available.

* Thermal testing in accordance with ASTM C1363 and ASTM C518.

Standard Exterior Colours:

Charcoal

Regal White

Old Zinc Grey

Ash Grey

Weathered Copper

Sierra Tan

Premium Exterior Colours:

Parchment

Champagne Metallic

Mocha

Bronze

Dark Bronze

Copper Penny

Terra Cotta

Colonial Red

Retro Red

Hemlock Green

Forest Green

Hatford Green

Silver Metallic

Twilight Blue

Regal Blue

Weathered Zinc

Old Town Zinc

Slate Grey

Black

Load Tables & Technical Data

Series: Edge, Horizon.

Profile: Mesa or Smooth.

Gauge: 26 ga or heavier.

Finished: Embossed or Smooth.

Panel Thickness	Design Criteria	4′ Allowable Loads (PSF)	5′ Allowable Loads (PSF)	6′ Allowable Loads (PSF)	7′ Allowable Loads (PSF)	8′ Allowable Loads (PSF)	9′ Allowable Loads (PSF)	10′ Allowable Loads (PSF)	11′ Allowable Loads (PSF)	12′ Allowable Loads (PSF)	13′ Allowable Loads (PSF)	14′ Allowable Loads (PSF)
2″ Thick (See Table Note #3)	Bending/Shear	93	59	41	30	23	18	15	12	10
2″ Thick	Deflection (L/180)	47	41	33	27	22	19	16	14	12
2″ Thick	Connection	42	35	33	26	22	19	16	15	13
3″ Thick	Bending/Shear	126	101	84	68	52	41	33	27	23
3″ Thick	Deflection (L/180)	94	77	68	58	34	32	29	19	17
3″ Thick	Connection	57	45	38	33	29	25	23	20	19
4″ Thick	Bending/Shear	168	134	112	84	64	51	41	34	29	24	21
4″ Thick	Deflection (L/180)	110	101	92	79	67	57	49	42	37	32	29
4″ Thick	Connection	57	45	38	33	29	25	23	20	19	17	16
5″ Thick	Bending/Shear	168	134	112	84	64	51	41	34	29	24	21
5″ Thick	Deflection (L/180)	110	101	92	79	67	57	49	42	37	32	29
5″ Thick	Connection	57	45	38	33	29	25	23	20	19	17	16
6″ Thick	Bending/Shear	168	134	112	84	64	51	41	34	29	24	21
6″ Thick	Deflection (L/180)	110	101	92	79	67	57	49	42	37	32	29
6″ Thick	Connection	57	45	38	33	29	25	23	20	19	17	16

TABLE NOTES:

1) Allowable loads were derived from tests conducted in accordance with ASTM E1592 and ASTM E72.

2) Allowable loads are calculated with a factor of safety of 2.0 for bending and shear.

3) Connection strengths reflect a standard fastener pattern – with two (2) 1/4″ – 14 self drilling screw into minimum 14ga substrate. Other substrates must be designed separately. 2″ wall panel utilize a flat clip. All other thicknesses utilize an angle clip.

4) Fastener capacity is based on manufacturer pullout/pullover data and are calculated with a safety factor of 3.0.

5) Allowable loads assume a minimum bearing of 2″.

6) Thermal Effects were not considered in analysis.

7) The structural capacity of the supporting members were not considered.

8) Bending/Shear and Deflection for 5″ and 6″ panels based on 4″ capacity.

PANEL WEIGHTS (PSF)

Panel Thickness (in.)	Panel Width (in.)	26/26 Steel Gauge (Facer/Liner)	24/26 Steel Gauge (Facer/Liner)	22/26 Steel Gauge (Facer/Liner)	26/24 Steel Gauge (Facer/Liner)	24/24 Steel Gauge (Facer/Liner)	22/24 Steel Gauge (Facer/Liner)	26/22 Steel Gauge (Facer/Liner)	24/22 Steel Gauge (Facer/Liner)	22/22 Steel Gauge (Facer/Liner)
2	42	2.23	2.48	2.73	2.48	2.73	2.98	2.76	2.98	3.23
3	42	2.44	2.69	2.94	2.69	2.94	3.19	2.94	3.19	3.44
4	42	2.65	2.90	3.15	2.90	3.15	3.40	3.15	3.40	3.65
5	42	2.85	3.10	3.35	3.10	3.35	3.60	3.35	3.60	3.85
6	42	3.06	3.31	3.56	3.31	3.56	3.81	3.56	3.81	4.06

MAXIMUM PANEL LENGTHS BASED ON COLOUR (FT).

Panel Thickness (in.)	Panel Width (in.)	Light Edge 22ga Wall*	Medium Edge 22ga Wall*	Dark Edge 22ga Wall*	Light Horizon 26ga/26ga Wall	Medium Horizon 26ga/26ga Wall	Dark Horizon 26ga/26ga Wall	Light Skyline 24ga/26ga Roof	Medium Skyline 24ga/26ga Roof	Dark Skyline 24ga/26ga Roof
2	42	25′	25′	20′	38′	25′	16′	47′	36′	24′
3	42	30′	30′	20′	45′	35′	25′	50′	38′	30′
4	42	30′	30′	25′	50′	38′	28′	52′	41′	32′
5	42	32′	30′	25′	52′	41′	30′	52′	44′	34′
6	42	32′	30′	25′	52′	44′	32′	52′	47′	36′

*Smooth or Embossed

Light = Regal White

Medium = Sierra Tan, Parchment, Silver Metallic

Dark = All others

Based on 5′ support spacing for walls & 4′ support spacing for roofs

*Smooth or Embossed

Subject to change without notice. Please refer to our website, www.artspaninc.com for current information.

Downloads:

Edge Wall Panels – Smooth

Edge Wall Panels – Light Embossed

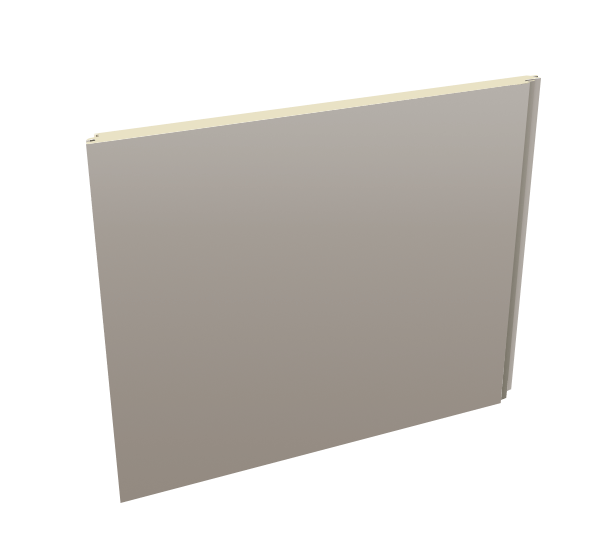

Edge Wall Panels

Leading Edge LE wall panels are produced with a standard flat steel face with no profile, offering a clean look to the exterior. These panels are available with the following exterior finishes:

SMOOTH (SM): Provides flat, smooth face.
LIGHT EMBOSSED (LE): Provides added subtle visual texture to a flat panel.

Coverage Width: 42” (1067mm)

Panel Lengths: 8’ to 32’ (2438mm to 9754mm) based on colour selection

Profile: Flat

Exterior Face: 22ga galvanized G-90 (Z275) pre-painted steel

Interior Face: 22ga, 24ga, or 26ga galvanized G-90 (Z275) pre-painted steel

Available Finish: Smooth, Light Emboss

THICKNESS	2”	3”	4”	5”	6”
EFFECTIVE R-VALUE*	16.67	25	33.33	41.67	50

INTERIOR FACE 26ga Mesa profile in smooth or Light Embossed galvanized G-90 (Z275) pre painted steel in Regal White. Other gauge options available.

* Thermal testing in accordance with ASTM C1363 and ASTM C518.

Standard Exterior Colours:

Charcoal

Regal White

Old Zinc Grey

Ash Grey

Weathered Copper

Sierra Tan

Premium Exterior Colours:

Parchment

Champagne Metallic

Mocha

Bronze

Dark Bronze

Copper Penny

Terra Cotta

Colonial Red

Retro Red

Hemlock Green

Forest Green

Hatford Green

Silver Metallic

Twilight Blue

Regal Blue

Weathered Zinc

Old Town Zinc

Slate Grey

Black

Load Tables & Technical Data

Series: Edge, Horizon.

Profile: Mesa or Smooth.

Gauge: 26 ga or heavier.

Finished: Embossed or Smooth.

Panel Thickness	Design Criteria	4′ Allowable Loads (PSF)	5′ Allowable Loads (PSF)	6′ Allowable Loads (PSF)	7′ Allowable Loads (PSF)	8′ Allowable Loads (PSF)	9′ Allowable Loads (PSF)	10′ Allowable Loads (PSF)	11′ Allowable Loads (PSF)	12′ Allowable Loads (PSF)	13′ Allowable Loads (PSF)	14′ Allowable Loads (PSF)
2″ Thick (See Table Note #3)	Bending/Shear	93	59	41	30	23	18	15	12	10
2″ Thick	Deflection (L/180)	47	41	33	27	22	19	16	14	12
2″ Thick	Connection	42	35	33	26	22	19	16	15	13
3″ Thick	Bending/Shear	126	101	84	68	52	41	33	27	23
3″ Thick	Deflection (L/180)	94	77	68	58	34	32	29	19	17
3″ Thick	Connection	57	45	38	33	29	25	23	20	19
4″ Thick	Bending/Shear	168	134	112	84	64	51	41	34	29	24	21
4″ Thick	Deflection (L/180)	110	101	92	79	67	57	49	42	37	32	29
4″ Thick	Connection	57	45	38	33	29	25	23	20	19	17	16
5″ Thick	Bending/Shear	168	134	112	84	64	51	41	34	29	24	21
5″ Thick	Deflection (L/180)	110	101	92	79	67	57	49	42	37	32	29
5″ Thick	Connection	57	45	38	33	29	25	23	20	19	17	16
6″ Thick	Bending/Shear	168	134	112	84	64	51	41	34	29	24	21
6″ Thick	Deflection (L/180)	110	101	92	79	67	57	49	42	37	32	29
6″ Thick	Connection	57	45	38	33	29	25	23	20	19	17	16

TABLE NOTES:

1) Allowable loads were derived from tests conducted in accordance with ASTM E1592 and ASTM E72.

2) Allowable loads are calculated with a factor of safety of 2.0 for bending and shear.

4) Fastener capacity is based on manufacturer pullout/pullover data and are calculated with a safety factor of 3.0.

5) Allowable loads assume a minimum bearing of 2″.

6) Thermal Effects were not considered in analysis.

7) The structural capacity of the supporting members were not considered.

8) Bending/Shear and Deflection for 5″ and 6″ panels based on 4″ capacity.

PANEL WEIGHTS (PSF)

Panel Thickness (in.)	Panel Width (in.)	26/26 Steel Gauge (Facer/Liner)	24/26 Steel Gauge (Facer/Liner)	22/26 Steel Gauge (Facer/Liner)	26/24 Steel Gauge (Facer/Liner)	24/24 Steel Gauge (Facer/Liner)	22/24 Steel Gauge (Facer/Liner)	26/22 Steel Gauge (Facer/Liner)	24/22 Steel Gauge (Facer/Liner)	22/22 Steel Gauge (Facer/Liner)
2	42	2.23	2.48	2.73	2.48	2.73	2.98	2.76	2.98	3.23
3	42	2.44	2.69	2.94	2.69	2.94	3.19	2.94	3.19	3.44
4	42	2.65	2.90	3.15	2.90	3.15	3.40	3.15	3.40	3.65
5	42	2.85	3.10	3.35	3.10	3.35	3.60	3.35	3.60	3.85
6	42	3.06	3.31	3.56	3.31	3.56	3.81	3.56	3.81	4.06

MAXIMUM PANEL LENGTHS BASED ON COLOUR (FT).

Panel Thickness (in.)	Panel Width (in.)	Light Edge 22ga Wall*	Medium Edge 22ga Wall*	Dark Edge 22ga Wall*	Light Horizon 26ga/26ga Wall	Medium Horizon 26ga/26ga Wall	Dark Horizon 26ga/26ga Wall	Light Skyline 24ga/26ga Roof	Medium Skyline 24ga/26ga Roof	Dark Skyline 24ga/26ga Roof
2	42	25′	25′	20′	38′	25′	16′	47′	36′	24′
3	42	30′	30′	20′	45′	35′	25′	50′	38′	30′
4	42	30′	30′	25′	50′	38′	28′	52′	41′	32′
5	42	32′	30′	25′	52′	41′	30′	52′	44′	34′
6	42	32′	30′	25′	52′	44′	32′	52′	47′	36′

*Smooth or Embossed

Light = Regal White

Medium = Sierra Tan, Parchment, Silver Metallic

Dark = All others

Based on 5′ support spacing for walls & 4′ support spacing for roofs

*Smooth or Embossed

Subject to change without notice. Please refer to our website, www.artspaninc.com for current information.

Downloads:

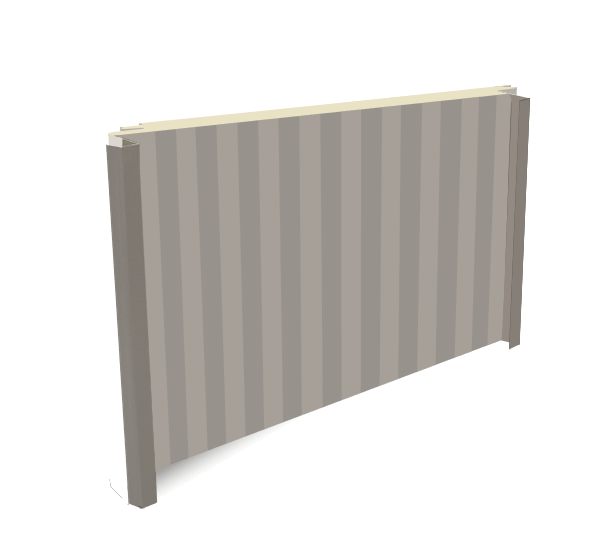

Skyline Roof Panels

Skyline Roof panels are produced with a standard Mesa profiled non-embossed smooth steel face. Provides economical roof panels for industrial and commercial projects. 2” Standing seam is mechanically folded and incorporates a hidden fastened clip.

Coverage Width: 42” (1067mm)

Panel Lengths: 10’ to 52’ (3048mm to 15850mm)

Profile: Mesa

Exterior Face: 22ga, 24ga, or 26ga galvanized G-90 (Z275) pre-painted steel

Interior Face: 22ga, 24ga, or 26ga galvanized G-90 (Z275) pre-painted steel

Available Finish: Smooth, Light Emboss (Interior)

THICKNESS	2”	3”	4”	5”	6”
EFFECTIVE R-VALUE*	16.67	25.00	33.33	41.67	50

INTERIOR FACE 26ga Mesa profile in smooth or Light Embossed galvanized G-90 (Z275) pre painted steel in Regal White. Other gauge options available.

* Thermal testing in accordance with ASTM C1363 and ASTM C518.

Standard Exterior Colours:

Charcoal

Regal White

Old Zinc Grey

Ash Grey

Weathered Copper

Sierra Tan

Premium Exterior Colours:

Parchment

Champagne Metallic

Mocha

Bronze

Dark Bronze

Copper Penny

Terra Cotta

Colonial Red

Retro Red

Hemlock Green

Forest Green

Hatford Green

Silver Metallic

Twilight Blue

Regal Blue

Weathered Zinc

Old Town Zinc

Slate Grey

Black

Load Tables & Technical Data

Series: Skyline.

Profile: Mesa.

Gauge: 26 ga or heavier.

Finished: Smooth.

Panel Thickness	Design Criteria	2′ Allowable Loads (PSF)	3′ Allowable Loads (PSF)	4′ Allowable Loads (PSF)	5′ Allowable Loads (PSF)	6′ Allowable Loads (PSF)	7′ Allowable Loads (PSF)	8′ Allowable Loads (PSF)
2″ Thick	Bending/Shear	192	128	96	77	64	49	38
2″ Thick	Deflection (L/240)	58	53	48	43	36	29	24
2″ Thick	Connection	65	44	33	26	22	19	16
3″ Thick	Bending/Shear	192	128	96	77	64	49	38
3″ Thick	Deflection (L/240)	58	53	48	43	36	29	24
3″ Thick	Connection	64	44	33	26	22	19	16
4″ Thick	Bending/Shear	291	224	168	134	112	96	84
4″ Thick	Deflection (L/240)	98	95	92	90	76	63	53
4″ Thick	Connection	65	44	33	26	22	19	16
5″ Thick	Bending/Shear	317	286	215	172	143	123	107
5″ Thick	Deflection (L/240)	108	102	96	90	83	70	58
5″ Thick	Connection	65	44	33	26	22	19	16
6″ Thick	Bending/Shear	349	312	248	199	166	142	124
6″ Thick	Deflection (L/240)	110	110	109	109	108	92	77
6″ Thick	Connection	65	44	33	26	22	19	16

TABLE NOTES:

1. Allowable loads were derived from tests conducted in accordance with ASTM E1592 and ASTM E72.

2. Allowable loads are calculated with a factor of safety of 2.0 for bending and shear.

3. Connection strengths reflect a standard fastener pattern – with two (2) 1/4″ – 14 self drilling screw into minimum 14ga substrate. Other substrates must be designed separately.

4. Fastener capacity is based on manufacturer pullout/pullover data and are calculated with a safety factor of 3.0.

5. Allowable loads assume a minimum bearing of 2″.

6. Thermal Effects were not considered in analysis.

7. The structural capacity of the supporting members were not considered.

PANEL WEIGHTS (PSF)

Panel Thickness (in.)	Panel Width (in.)	26/26 Steel Gauge (Facer/Liner)	24/26 Steel Gauge (Facer/Liner)	22/26 Steel Gauge (Facer/Liner)	26/24 Steel Gauge (Facer/Liner)	24/24 Steel Gauge (Facer/Liner)	22/24 Steel Gauge (Facer/Liner)	26/22 Steel Gauge (Facer/Liner)	24/22 Steel Gauge (Facer/Liner)	22/22 Steel Gauge (Facer/Liner)
2	42	2.23	2.48	2.73	2.48	2.73	2.98	2.76	2.98	3.23
3	42	2.44	2.69	2.94	2.69	2.94	3.19	2.94	3.19	3.44
4	42	2.65	2.90	3.15	2.90	3.15	3.40	3.15	3.40	3.65
5	42	2.85	3.10	3.35	3.10	3.35	3.60	3.35	3.60	3.85
6	42	3.06	3.31	3.56	3.31	3.56	3.81	3.56	3.81	4.06

MAXIMUM PANEL LENGTHS BASED ON COLOUR (FT).

Panel Thickness (in.)	Panel Width (in.)	Light Edge 22ga Wall*	Medium Edge 22ga Wall*	Dark Edge 22ga Wall*	Light Horizon 26ga/26ga Wall	Medium Horizon 26ga/26ga Wall	Dark Horizon 26ga/26ga Wall	Light Skyline 24ga/26ga Roof	Medium Skyline 24ga/26ga Roof	Dark Skyline 24ga/26ga Roof
2	42	25′	25′	20′	38′	25′	16′	47′	36′	24′
3	42	30′	30′	20′	45′	35′	25′	50′	38′	30′
4	42	30′	30′	25′	50′	38′	28′	52′	41′	32′
5	42	32′	30′	25′	52′	41′	30′	52′	44′	34′
6	42	32′	30′	25′	52′	44′	32′	52′	47′	36′

*Smooth or Embossed

Light = Regal White

Medium = Sierra Tan, Parchment, Silver Metallic

Dark = All others

Based on 5′ support spacing for walls & 4′ support spacing for roofs

*Smooth or Embossed

Subject to change without notice. Please refer to our website, www.artspaninc.com for current information.

Downloads:

Panel Features

Weight of aproximately 3.3 lbs/sq.ft. (based of 24ga top and bottom sheets)

5” polyisocyanurate foam core with density of aproximately 2.5 lbs./cu.ft.

Effective R-Value 28.5

Flame Spread Rating (tested in accordance with CAN/ULC S102-10) – 10

Smoke Developed Classification (tested in accordance with CAN/ULC S102-10) – 215

Pre painted galvalume top and bottom steel sheets

Wide selection of colour options available

Patented one piece, continuous corner

Foam-to-foam bond panel joints

Pre finished on exterior and interior sides

High rib profile accommodates mechanical lines

STC Rating (tested in accordance with ASTM E90 standard) – 26

Smarter, Faster Way to Build

Eliminate the need for complex stud framing or trusses. Summit panels feature a unique deep-corrugated profile that provides superior load-bearing capabilities, allowing them to act as the primary structural element of your building. We deliver a complete, flat-packed kit pre-cut to your exact specifications—streamlining construction from foundation to ridge.

Interior Face

The self-framing 24-gauge steel profile creates a rigid structure with built-in utility chases. This deep-corrugated face can be left exposed for an industrial look or finished directly with drywall.

Exterior Face

Durable 24-gauge steel with concealed fasteners ensures a clean, maintenance-free aesthetic. Conforms to ASTM standards and comes in a wide variety of colors to match your design.

Pre-Cut, Flat-Packed Kits

A complete envelope system for floors, walls, and roofs. Panels arrive flat-packed and pre-cut to your exact specifications, with all necessary hardware and sealants included.

Assembly Drawings

Installation is streamlined with individually labeled panels that correspond to detailed assembly guides. Stamped engineered drawings are available upon request for code compliance.
